Cooktop
Coil Element and Receptacle Repair
Coil elements on an electric cooktop that stay cold, spark at the plug or heat unevenly, along with the receptacles, drip bowls and wiring they plug into.
Mon–Sat, 8am–8pm
- Lowest cost band
- 5 steps on the visit
- 4 problems it answers
Book a visit
Three short steps, about a minute.
or call (844) 252-4077
Loading appointment form…
The appointment form couldn’t load. Please try again.
What the cooktop coil element and receptacle repair
involves.

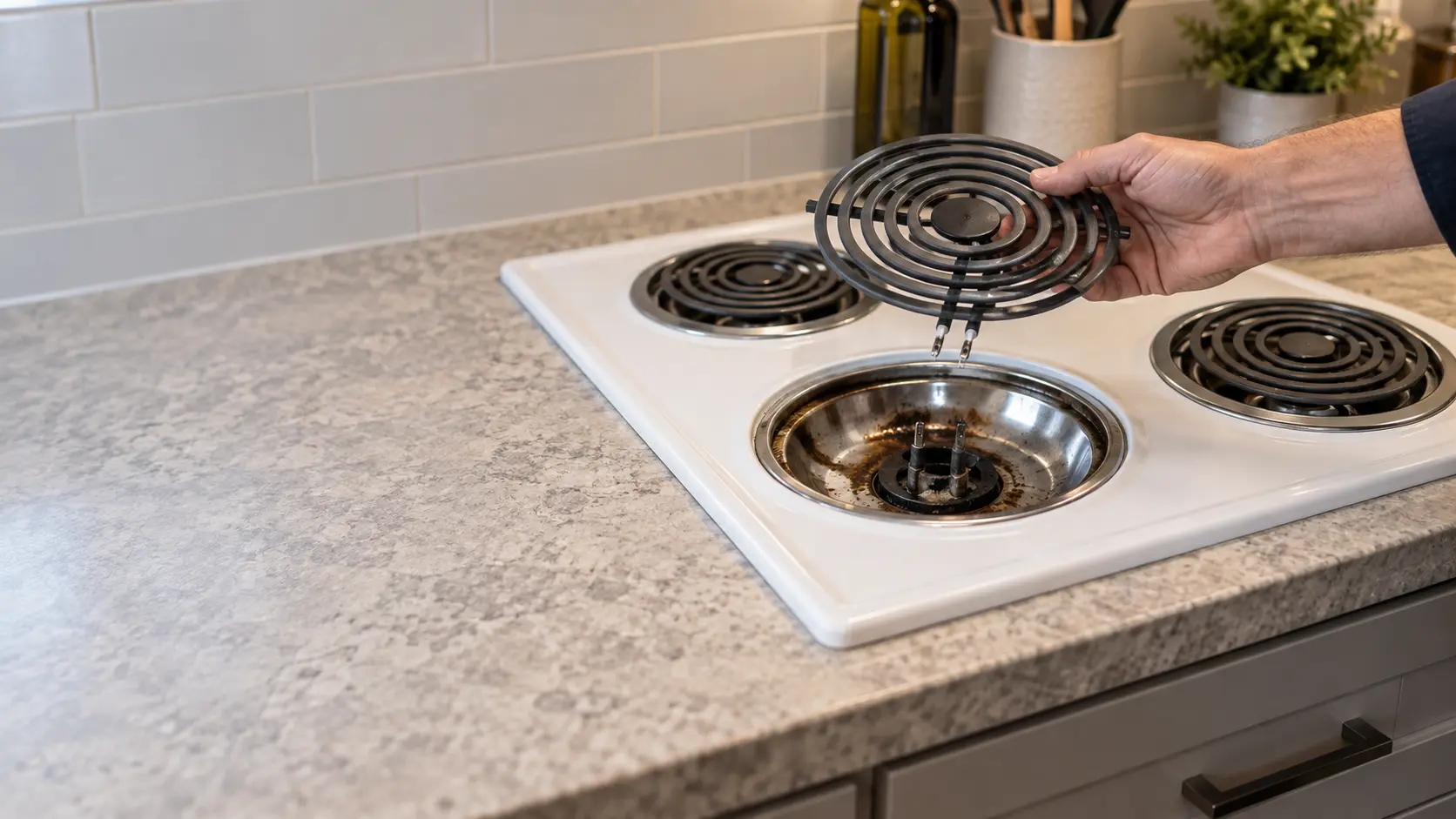

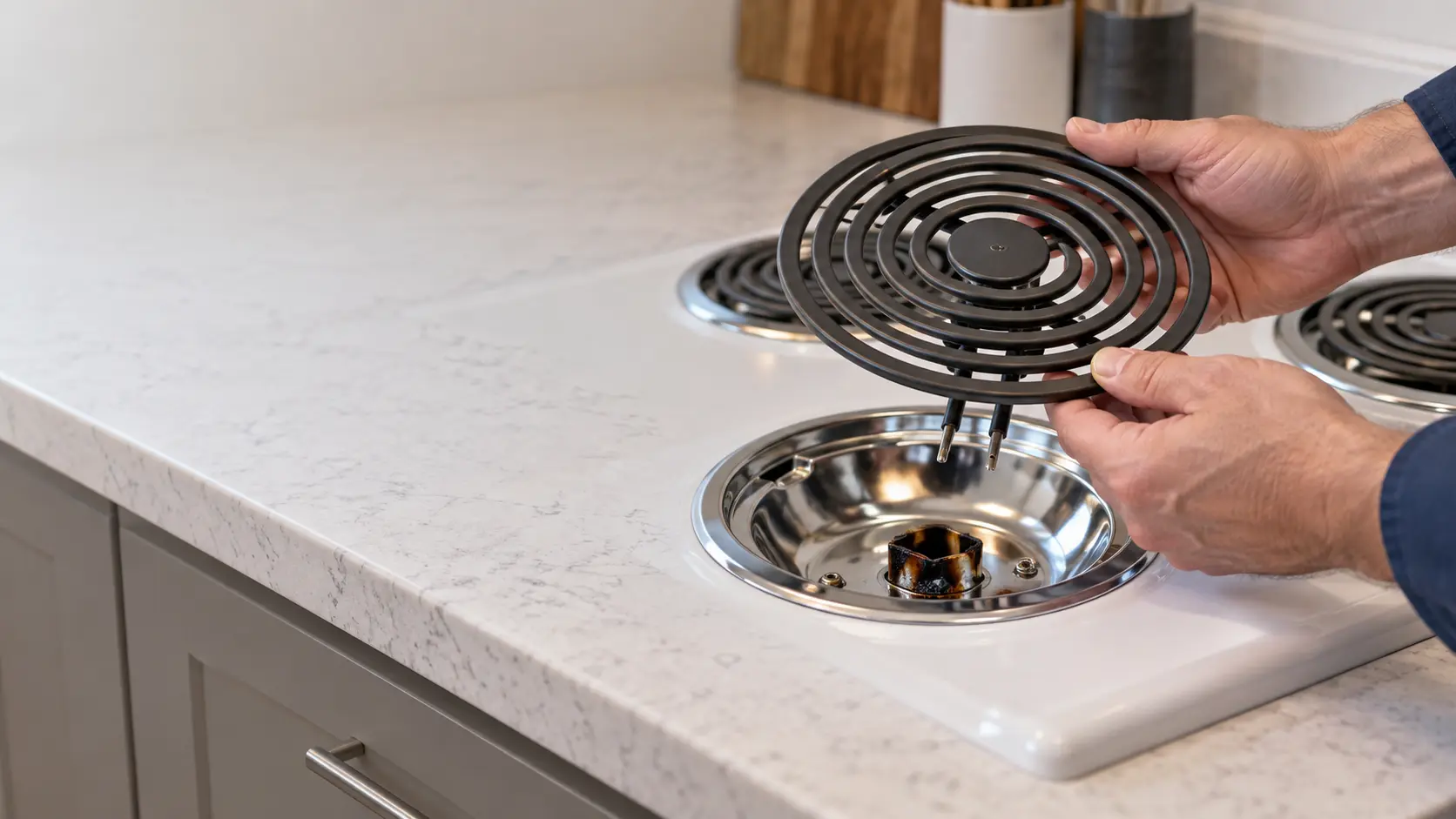

Coil cooktop element repair covers the open, spiral elements that plug into a terminal block at the back of each position. A coil draws a lot of current, and its two prongs must fit tightly into the receptacle; a loose or corroded fit heats the contacts, blackens the prongs and in time burns the receptacle and the wire behind it. A coil can also crack or blister along its length and then go dead or show one bright spot. The repair tests the coil on its own, then the receptacle and the switch, and replaces coil and receptacle together when the prongs show burn marks, since a new coil in a scorched receptacle soon fails again.
How the visit goesWhat it usually costsLowest · Coil element, receptacle or drip bowl
Coils, receptacles and drip bowls are some of the least costly parts a cooktop uses. Scorched wire behind a receptacle adds a little time and not much more.
Answers 4 problemsCooktop Element Not Heating
Cooktop Burning Smell · Cooktop Tripping Breaker · Cooktop Element Only Heats on High
Comes up most onElectric cooktop
Coil element and receptacle repair,
step by step.
Run every coil from low to high and leave a top where each element sits level and plugs in firmly.
Swap the suspect coil into a working position to see whether the coil or its position is the problem.
Switch off the breaker and raise the cooktop top to reach the receptacles and the wiring.
Inspect the prongs and the receptacle for burning, and measure the coil and the switch that feeds it.
Replace the coil, the receptacle and any heat-damaged wire, with a new drip bowl if the old one is warped.
Run every coil from low to high and leave a top where each element sits level and plugs in firmly.
The problems
it answers.
4 of them, from cooktop element not heating to cooktop element only heats on high.
All problems
Cooktop Element Not Heating
6 causes, cheapest first
Before you call
Tell us this when you book
- Which coil, and whether it is dead, weak or sparking
- Whether the coil feels loose or wobbles in its bowl
- Whether the same position has failed before
- Whether the cooktop has its knobs on the top or on a front panel
It also answers
Lowest,
on the site's scale.
Coils, receptacles and drip bowls are some of the least costly parts a cooktop uses. Scorched wire behind a receptacle adds a little time and not much more.
Read the full cost guide| Repair | Relative cost |
|---|---|
| Burner head, cap or electrode | |
| Spark module, gas valve or regulator | |
| Radiant element or limiter | |
| Glass-ceramic top | |
| Coil element, receptacle or drip bowl | lowest |
| Induction power board, coil or sensor | |
| Touch control board or key panel | |
| Infinite switch or knob | |
| Cooling fan, downdraft blower or lift motor |
Where it
comes up most.
Most bookings: Electric cooktop.
All cooktop typesOften the same visit
The makes
we see it on.
29 makes on this site, and the cooktop coil element and receptacle repair on any of them. Each mark opens that make's own page.
All 29 brandsCoil element and receptacle repair,
where we come out.
The kitchen, the climate and the building all change how the cooktop coil element and receptacle repair goes. These notes are about that, metro by metro.
All service areasTampa BayFL · 31 areas
Coil cooktops still turn up in older Tampa Bay houses and rentals, and a coil that heats only when wiggled usually has a burned receptacle block under the drip bowl, replaced along with the coil if its terminals are pitted.
OrlandoFL · 30 areas
Budget rentals and older Orlando homes keep plug-in coil cooktops, where guests often push coils in crooked, and a scorched receptacle or a coil that arcs at its plug is a common and quick repair.
Miami / South FloridaFL · 47 areas
South Florida still has coil cooktops in older garden apartments and houses, and salt air corrodes coil terminals and receptacles together, so the repair replaces both to stop the arcing.
New York MetroNY · 75 areas
In New York some older rentals keep coil-element cooktops, and a coil that sparks or cooks unevenly usually points to a worn receptacle behind the drip bowl, replaced with the power off at the panel.
HoustonTX · 36 areas
Older Houston houses with electric kitchens may still have a coil cooktop, and a burned receptacle there can ruin the coil and drip bowl with it, so all three are replaced when the terminals are pitted.
ChicagoIL · 50 areas
Coil cooktops in older Chicagoland apartments get heavy winter use, and a coil that cycles off early or glows unevenly is traced to the coil, its receptacle or the switch behind its knob.
Los AngelesCA · 95 areas
Coil cooktops are rare in Los Angeles remodels but persist in rental units, where a loose receptacle or a warped drip bowl is the usual reason a coil will not sit level or reach full heat.
San DiegoCA · 31 areas
San Diego rental kitchens and older houses still run plug-in coil cooktops, and close to the shore the coil terminals and receptacles corrode side by side, so they are replaced as a set.
San Francisco Bay AreaCA · 74 areas
Bay Area coil cooktops are mostly in older rentals and in-law units, where the repair is quick and a burned receptacle is replaced before it can damage the new coil.
Questions about
the cooktop coil element and receptacle repair.
Can I just buy a new coil and plug it in?
Why does a coil work in one spot and not in another?
Do the drip bowls matter?
Is a small coil repair worth a visit?
Back to your everyday
Ready to book the cooktop coil element and receptacle repair?
Have these to hand: which coil, and whether it is dead, weak or sparking, whether the coil feels loose or wobbles in its bowl, whether the same position has failed before, whether the cooktop has its knobs on the top or on a front panel.
